一. 关于ActiveMQ
ActiveMQ 是Apache出品,最流行的,能力强劲的开源消息总线。ActiveMQ 是一个完全支持JMS1.1和J2EE 1.4规范的 JMS Provider实现,尽管JMS规范出台已经是很久的事情了,但是JMS在当今的J2EE应用中间仍然扮演着特殊的地位。
相关网站如下:
可以在官网获取常用的帮助文档。

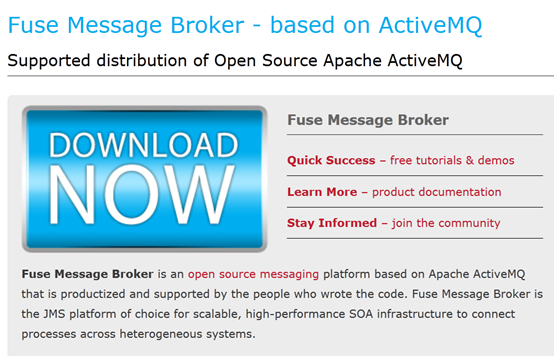

二. 关于Fuse Message Broker
Fuse Message Broker 是FuseSource提供的Apache ActiveMQ可信发布版本。FuseSource 作 为Apache ActiveMQ社区的一部分,负责其所有的开发和bug修复,所以这两者没有什么不同。FuseSource也许比Apache发布的更为频繁,因此可 能Fuse Message Broker发布的版本比Apache ActiveMQ发布的版本在更新bug修复上要响应的更快
相关网站如下:
http://fusesource.com/products/enterprise-activemq/
三. ActiveMQ调优资料

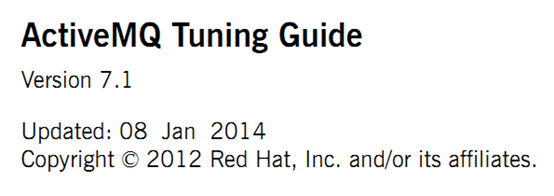

下面是一个ActiveMQ调优参考资料,资料原内容是基于ActiveMQ的Fuse Broker的调优文档
http://pan.baidu.com/s/1o6DHtge

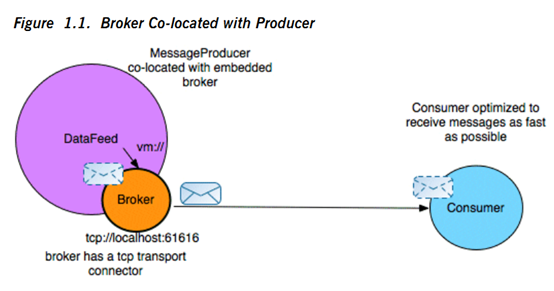

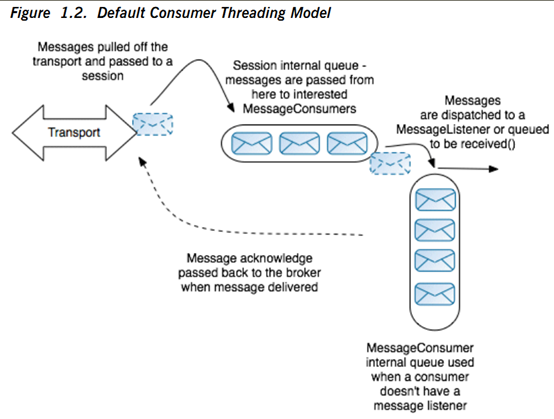

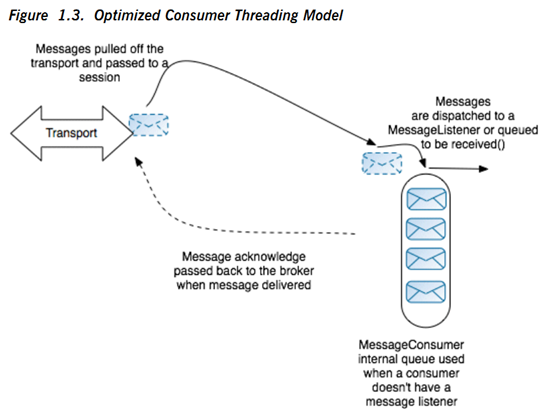

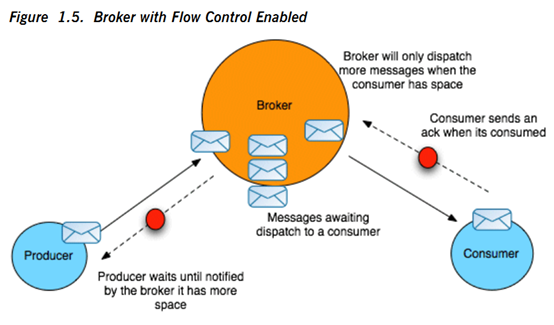

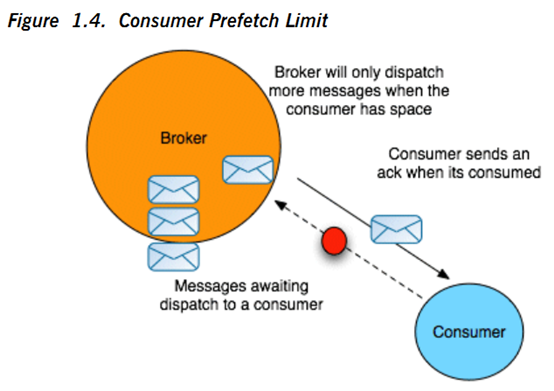

部分参考内容如下下图等
四. Kahadb配置文档
参考网站如下:
http://activemq.apache.org/kahadb.html
部分内容如下:
Configuration
You can configure ActiveMQ to use KahaDB for its persistence adapter - like below:
<broker brokerName="broker" ... > <persistenceAdapter> <kahaDB directory="activemq-data" journalMaxFileLength="32mb"/> </persistenceAdapter> ... </broker> |
KahaDB Properties
property name | default value | Comments |
directory | activemq-data | the path to the directory to use to store the message store data and log files |
IndexDirectory | If set, configures where the KahaDB index files will be stored. If not set, the index files are stored in the directory specified by the 'directory' attribute. Icon Available as of ActiveMQ 5.10 | |
indexWriteBatchSize | 1000 | number of indexes written in a batch |
indexCacheSize | 10000 | number of index pages cached in memory |
enableIndexWriteAsync | false | if set, will asynchronously write indexes |
journalMaxFileLength | 32mb | a hint to set the maximum size of the message data logs |
enableJournalDiskSyncs | true | ensure every non transactional journal write is followed by a disk sync (JMS durability requirement) |
cleanupInterval | 30000 | time (ms) before checking for a discarding/moving message data logs that are no longer used |
checkpointInterval | 5000 | time (ms) before checkpointing the journal |
ignoreMissingJournalfiles | false | If enabled, will ignore a missing message log file |
checkForCorruptJournalFiles | false | If enabled, will check for corrupted Journal files on startup and try and recover them |
checksumJournalFiles | false true v5.9 | create a checksum for a journal file - to enable checking for corrupted journals |
archiveDataLogs | false | If enabled, will move a message data log to the archive directory instead of deleting it. |
directoryArchive | null | Define the directory to move data logs to when they all the messages they contain have been consumed. |
maxAsyncJobs | 10000 | the maximum number of asynchronous messages that will be queued awaiting storage (should be the same as the number of concurrent MessageProducers) |
concurrentStoreAndDispatchTopics | false | enable the dispatching of Topic messages to interested clients to happen concurrently with message storage |
concurrentStoreAndDispatchQueues | true | enable the dispatching of Queue messages to interested clients to happen concurrently with message storage |
archiveCorruptedIndex | false | If enabled, corrupted indexes found at startup will be archived (not deleted) |
For tuning locking properties please take a look at Pluggable storage lockers
五. Broker相关参考资料

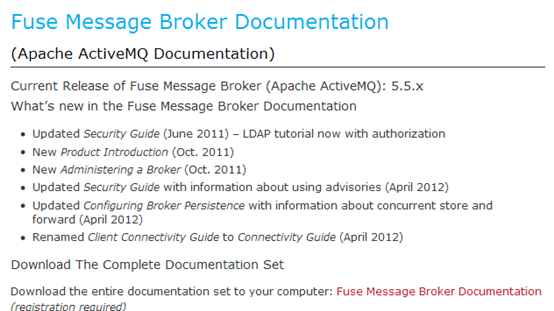

http://fusesource.com/documentation/fuse-message-broker-documentation/

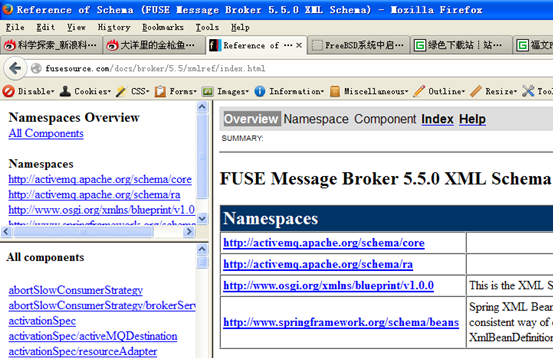

Broker的xml参考文档
http://fusesource.com/docs/broker/5.5/xmlref/index.html

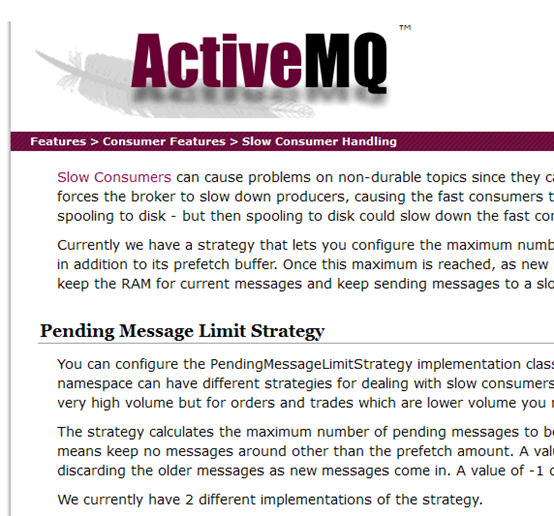

http://activemq.apache.org/slow-consumer-handling.html
慢速处理资料
六. Kahadb持久化相关资料
http://fusesource.com/docs/broker/5.5/persistence/FuseMBPersistIntro.html
Understanding the KahaDB Message Store
Overview
The KahaDB message store is the default persistence store used by Fuse Message Broker. It is a file-based persistence adapter that is optimized for maximum performance. The main features of KahaDB are:
journal-based storage so that messages can be rapidly written to disk
allows for the broker to restart quickly
storing message references in a B-tree index which can be rapidly updated at run time
full support for JMS transactions
various strategies to enable recovery after a disorderly shutdown of the broker
Architecture
The KahaDB message store is an embeddable, transactional message store that is fast and reliable. It is an evolution of the AMQ message store used by Fuse Message Broker 5.0 to 5.3. It uses a transactional journal to store message data and a B-tree index to store message locations for quick retrieval.

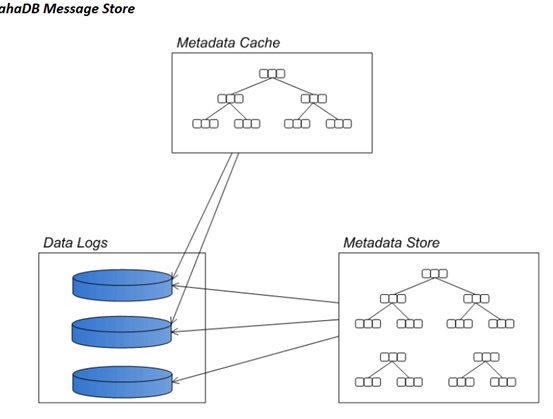

Figure 2.1 shows a high-level view of the KahaDB message store.
