JavaWeb中Servlet和JSP的分工案例

  categories:资料  author:

jsp和Servlet的分工:

  * JSP:
> 作为请求发起页面,例如显示表单、超链接。
> 作为请求结束页面,例如显示数据。
* Servlet:
> 作为请求中处理数据的环节。

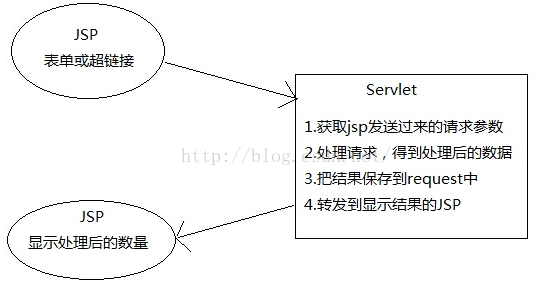

来看一张图:



下边显示一个小Demo,在一个jsp页面中输入两个参数,在另一个页面中将两者相加的结果显示。

AServlet.java

package com.ywq;

import java.io.IOException;
import java.io.PrintWriter;

import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class AServlet extends HttpServlet {


	public void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		//从form.jsp页面获取参数
		String num1=request.getParameter("num1");
		String num2=request.getParameter("num2");

		//参数类型转换
		int a=Integer.parseInt(num1);
		int b=Integer.parseInt(num2);

		int sum=a+b;

		//将运算结果保存在request域中
		request.setAttribute("result", sum);

		//请求转发,使转换到显示结果页面。
		RequestDispatcher rd=request.getRequestDispatcher("/add/result.jsp");
		rd.forward(request, response);
	}

}

form.jsp

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
  <head>
    <base href="<%=basePath%>">

    <title>这个页面用来输入两个参数</title>

	<meta http-equiv="pragma" content="no-cache">
	<meta http-equiv="cache-control" content="no-cache">
	<meta http-equiv="expires" content="0">
	<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
	<meta http-equiv="description" content="This is my page">
	<!--
	<link rel="stylesheet" type="text/css" href="styles.css">
	-->

  </head>

  <body>
   <form action="/day11_1/AServlet" method="post">
   	加数1:<input type="text" name="num1"/><br>
	加数2:<input type="text" name="num2"/><br>
	<input type="submit" value="运算">
   </form>
  </body>
</html>

result.jsp

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
  <head>
    <base href="<%=basePath%>">

    <title>运算结果显示页面</title>

	<meta http-equiv="pragma" content="no-cache">
	<meta http-equiv="cache-control" content="no-cache">
	<meta http-equiv="expires" content="0">
	<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
	<meta http-equiv="description" content="This is my page">
	<!--
	<link rel="stylesheet" type="text/css" href="styles.css">
	-->

  </head>

  <body>
   <%
   		Integer sum=(Integer)request.getAttribute("result");
    %>

    <%=sum %>
  </body>
</html>

将Project部署到Tomcat中,启动服务器,在浏览器中输入http://localhost:8080/day11_1/add/form.jsp,则出现下图所示:

输入两个参数,点击按钮,则出现如下所示:

项目工程截图如下:



来源: https://www.cnblogs.com/lanzhi/p/6467289.html
